Product description

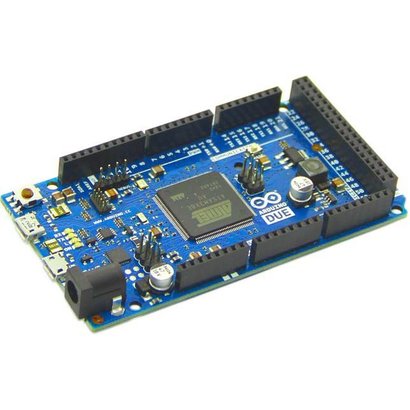

Arduino Due R3 With USB Cable

Arduino DUE R3



The Arduino DUE R3 is a microcontroller board based on the AT91SAM3X8E (datasheet). It has 54 digital input/output pins (of which 12 can be used as PWM outputs), 12 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started. The DUE R3 is compatible with some shields designed for 3.3 Volt

Also the range of shield that are avalible for the Arduino Uno will fit on the ArduinoDUE R3 as well, there is a need for shields that are specialy made for the DUE R3, So your LCD Shield, Ethernet Shield, Relay Shield, Datalogger Shield, Sensor Expansion Shield and so will have to support operation on 3.3 volt



Microcontroller AT91SAM3X8E
Operating Voltage 3.3V
Input Voltage (recommended) 7-12V
Input Voltage (limits) 6-16V
Digital I/O Pins 54 (of which 12 provide PWM output)
Analog Input Pins 12
Analog Output Pins 2 (DAC)
Total DC Output Current on all I/O lines 130 mA
DC Current for 3.3V Pin 800 mA
DC Current for 5V Pin 800 mA
Flash Memory 512 KB all available for the user applications
SRAM 96 KB (two banks: 64KB and 32KB)
Clock Speed 84 MHz
Length 101.52 mm
Width 53.3 mm
Weight 36 g



The Arduino DUE R3 will be delivered with a USB Cable
