Arduino Uno R3 with USB Cable

€11,95 €11,45
  • Availability: In stock
  • Delivery time:Will be shipped within 24 hours
Arduino Uno R3 with USB Cable. Upgrade your project with and arduino to have endless array of possibilities.
-- 14 Digital I/O's
-- of Which 6 PWM Capable
-- 6 Analog I/O's ...More information
  • Gratis verzending vanaf 50 Euro
  • Verzending al vanaf 2.50 Euro
  • Kans op een gratis product dat bij jouw order past
  • Doorgaans op werkdagen, binnen 24 uur verzonden.

Product description

  • Availability: In stock
  • Delivery time:Will be shipped within 24 hours
  • Unit price:€11,45 / Piece

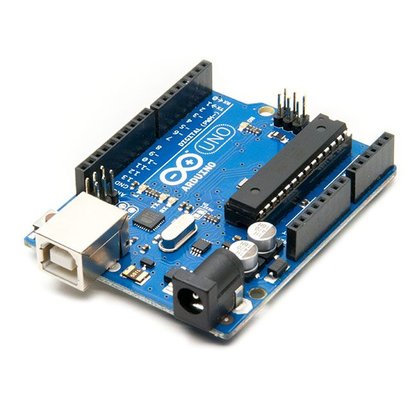

Arduino Uno R3



The Arduino Uno R3 is a microcontroller board based on the ATmega328. It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, a 16 MHz ceramic resonator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started.



The Uno differs from all preceding boards in that it does not use the FTDI USB-to-serial driver chip. Instead, it features the Atmega16U2 (Atmega8U2 up to version R2) programmed as a USB-to-serial converter.



Basically all the avalible Shield that are made today will be usable on the Arduino Uno R3, also the ATmega 328 Chip is replacable, this offers a extra option to use the board itself as a programmer, after you uploaded your sketch to the Arduino Chip itself you can then take out the chip, place it in your project and put a new chip in the board, make sure you have a bootloader ready chip, we have this chip avalible in this webshop.



Microcontroller ATmega328
Operating Voltage 5V
Input Voltage (recommended) 7-12V
Input Voltage (limits) 6-20V
Digital I/O Pins 14 (of which 6 provide PWM output)
Analog Input Pins 6
DC Current per I/O Pin 40 mA
DC Current for 3.3V Pin 50 mA
Flash Memory 32 KB (ATmega328) of which 0.5 KB used by bootloader
SRAM 2 KB (ATmega328)
EEPROM 1 KB (ATmega328)
Clock Speed 16 MHz



The Arduino Uno R3 will be delivered with a USB Cable.


Datasheet ATmega328
