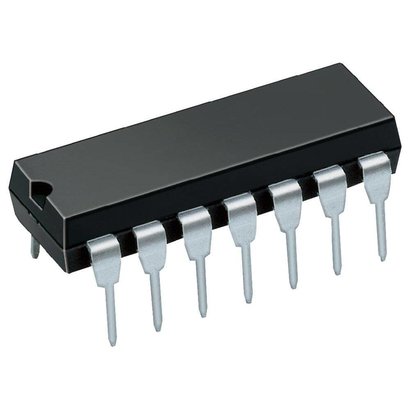

CD4093

CD4093

€0,35 €0,25
  • Availability: In stock
  • Delivery time:Will be shipped within 24 hours
2-input nand schnitt trigger
Type CD4093 ...More information
  • Gratis verzending vanaf 50 Euro
  • Verzending al vanaf 2.50 Euro
  • Kans op een gratis product dat bij jouw order past
  • Doorgaans op werkdagen, binnen 24 uur verzonden.

Product description

  • Availability: In stock
  • Delivery time:Will be shipped within 24 hours
  • Unit price:€0,25 / Piece

Description

The CD4093B consists of four Schmitt-trigger circuits. Each
circuit functions as a 2-input NAND gate with Schmitt-trigger
action on both inputs. The gate switches at different points
for positive and negative-going signals. The difference between
the positive (VTa) and the negative voltage (VTb) is
defined as hysteresis voltage (VH).
All outputs have equal source and sink currents and conform
to standard B-series output drive (see Static Electrical
Characteristics).

Features

Wide supply voltage range 3.0V to 15V
Schmitt-trigger on each input with no external components
Noise immunity greater than 50%
Equal source and sink currents
No limit on input rise and fall time
Standard B-series output drive
