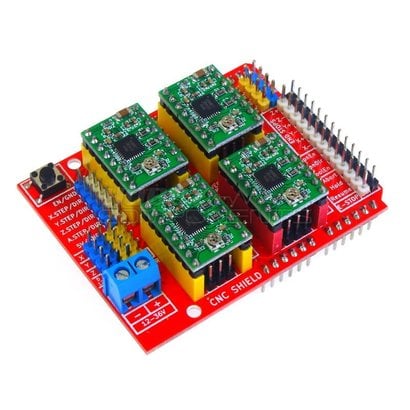

CNC Shield, with Stepper Drivers, Including Arduino Uno

CNC Shield, with Stepper Drivers, Including Arduino Uno

€29,99 €25,00
  • Availability: In stock
  • Delivery time:Will be shipped within 24 hours
CNC Shield for use with Arduino Uno, Mega, Due Yun ect ect
- CNC X,Y,Z,A Assen
- Met Drivers
- Met Koellichamen
- Shield Size ...More information
  • Gratis verzending vanaf 50 Euro
  • Verzending al vanaf 2.50 Euro
  • Kans op een gratis product dat bij jouw order past
  • Doorgaans op werkdagen, binnen 24 uur verzonden.

Product description

  • Availability: In stock
  • Delivery time:Will be shipped within 24 hours
  • Unit price:€25,00 / Piece
CNC Shield V3.0 features:
Latest Arduino CNC Shield Version 3.0
GRBL 0.8c compatible. (Open source firmware that runs on an Arduino UNO that turns G-code commands into stepper signals)
4-Axis support (X, Y, Z , A-Can duplicate X,Y,Z or do a full 4th axis with custom firmware using pins D12 and D13)
2 x End stops for each axis (6 in total)
Spindle enable and direction
Coolant enable
Uses removable Pololu A4988 compatible stepper drivers. (A4988, DRV8825 and others)
Jumpers to set the Micro-Stepping for the stepper drivers. (Some drivers like the DRV8825 can do up to 1/32 micro-stepping )
Compact design.
Stepper Motors can be connected with 4 pin molex connectors or soldered in place.
Runs on 12-36V DC. (At the moment only the Pololu DRV8825 drivers can handle up to 36V so please consider the operation voltage when powering the board.)

Shipment:

1 x CNC Shield
1 x Arduino Uno R3
1 x USB Kabel
4 x Stepper Driver
4 x Heatsink for stepper driver
