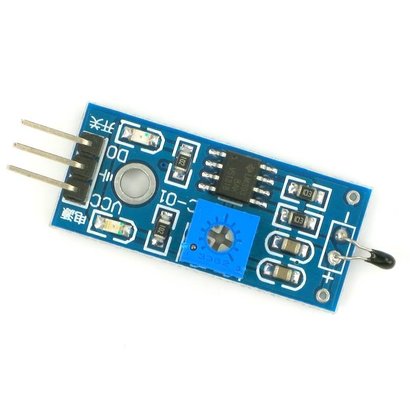

Digital Sensor Sensor Module suitable for Arduino

Digital Sensor Sensor Module suitable for Arduino

€2,49 €2,25
  • Availability: In stock
  • Delivery time:Will be shipped within 24 hours
Digital Thermal Sensor Module used for the detection of temperaturs based on a LM393 Chip
- Digital Thermal Sensing
- Small Size
- Input 3.3 t/m 5 Volts ...More information
  • Gratis verzending vanaf 50 Euro
  • Verzending al vanaf 2.50 Euro
  • Kans op een gratis product dat bij jouw order past
  • Doorgaans op werkdagen, binnen 24 uur verzonden.

Product description

  • Availability: In stock
  • Delivery time:Will be shipped within 24 hours
  • Unit price:€2,25 / Piece
This sensor detects temperatures that are set by the potentiometer, it is however not possible to request values from this sensor, it only activated an output as 1 HIGh or 0 LOW. The Threshold of the temperature can be adjusted by the potentiometer, when the temperature reaches the set value the outbut wil become HIGH, when the temperature drops belows the set value the output changes to LOW 0

Specifications:

Sensor Type: NTC
Maximum Power: 15mA
Threshold Adjustable
Input 3.3 to 5 Volts
Digital Output Either 1 High or 0 LOW
Based on a LM393 Comperator
