Dual H-Bridge Module

Dual H-Bridge Module

€4,99 €3,99
  • Availability: In stock
  • Delivery time:Will be shipped within 24 hours
L298N motor drive module ...More information
  • Gratis verzending vanaf 50 Euro
  • Verzending al vanaf 2.50 Euro
  • Kans op een gratis product dat bij jouw order past
  • Doorgaans op werkdagen, binnen 24 uur verzonden.

Product description

  • Availability: In stock
  • Delivery time:Will be shipped within 24 hours
  • Unit price:€3,99 / Piece
Description

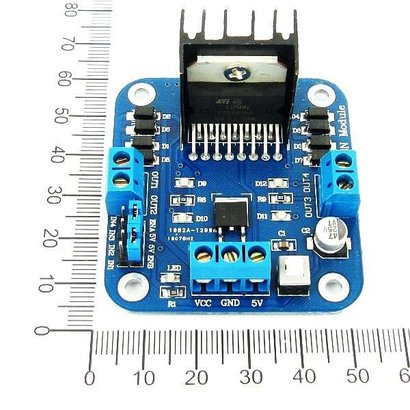

L298N motor drive module

Product parameters:
1: driver chips: L298N dual H-bridge DC motor driver chip
2: Power-driven part of the terminal range of Vs: +5 V ~ +35 V;
3: input power supply range Vs: +7 V ~ +35 V
4: max drive current Io: 2A
5: input controll voltage Vss: +5 V ~ +7 V
5 logical operating current range: 0 ~ 36mA
6 Control signal input voltage range:
Low:-0.3V ? Vin ? 1.5V
High: 2.3V ? Vin ? Vss
7. Enable input voltage range:
Low: -0.3 ? Vin ? 1.5V (control signal void)
High: 2.3V ? Vin ? Vss (control signal active)
8 Maximum power consumption: 20W (when the temperature T = 75 ?)
9. Storage temperature: -25 ? ~ +130 ?
10 Driver Board Size: 55mm * 49mm * 33mm
11 drive plate Weight: 34g
