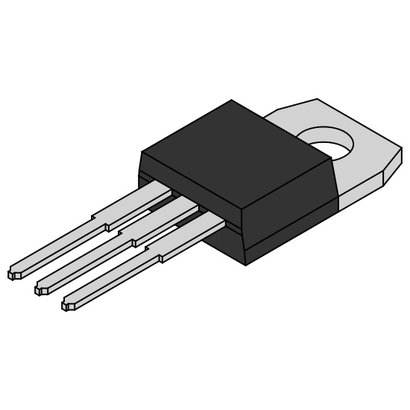

L7806CV

L7806CV

€0,40
  • Availability: In stock
  • Delivery time:Will be shipped within 24 hours
Voltage Regulator
6V 1.5A
Type L7806CV
Positive ...More information
  • Gratis verzending vanaf 50 Euro
  • Verzending al vanaf 2.50 Euro
  • Kans op een gratis product dat bij jouw order past
  • Doorgaans op werkdagen, binnen 24 uur verzonden.

Product description

  • Availability: In stock
  • Delivery time:Will be shipped within 24 hours
  • Unit price:€0,40 / Piece

DESCRIPTION

The L7800 series of three-terminal positive
regulators is available in TO-220, TO-220FP,
TO-220FM, TO-3 and D2PAK packages and
several fixed output voltages, making it useful in a
wide range of applications. These regulators can
provide local on-card regulation, eliminating the
distribution problems associated with single point
regulation. Each type employs internal current
limiting, thermal shut-down and safe area
protection, making it essentially indestructible. If
adequate heat sinking is provided, they can
deliver over 1A output current. Although designed
primarily as fixed voltage regulators, these
devices can be used with external components to
obtain adjustable voltage and currents.

FEATURES

OUTPUT CURRENT TO 1.5A
OUTPUT VOLTAGES OF 5; 5.2; 6; 8; 8.5; 9; 10; 12; 15; 18; 24V
THERMAL OVERLOAD PROTECTION
SHORT CIRCUIT PROTECTION
OUTPUT TRANSITION SOA PROTECTION



Datasheet
