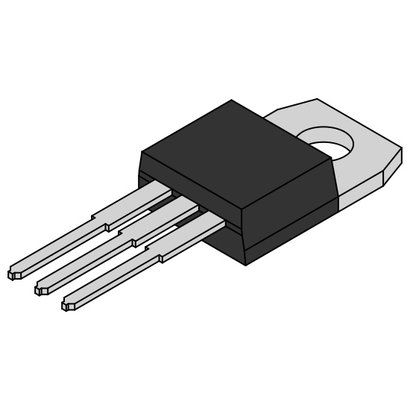

The L7900 series of three-terminal negative
regulators is available in TO-220, ISOWATT220
TO-3 and D2PAK packages and several fixed
output voltages, making it useful in a wide range
of applications.These regulators can provide local
on-card regulation, eliminating the distribution
problems associated with single point regulation;
furthermore, having the same voltage option as
the L7800 positive standard series, they are
particularly suited for split power supplies. In
addition, the -5.2V is also available for ECL
system. If adequate heat sinking is provided,
they can deliver over 1.5A output current.
Although designed primarily as fixed voltage
regulators, these devices can be used with
external components to obtain adjustable
voltages and currents.
OUTPUT CURRENT UP TO 1.5 A
OUTPUT VOLTAGESOF -5; -5.2; -6; -8; -9; -12; -15; -18; -20; -22; -24V
SHORT CIRCUIT PROTECTION
OUTPUT TRANSITION SOA PROTECTION
