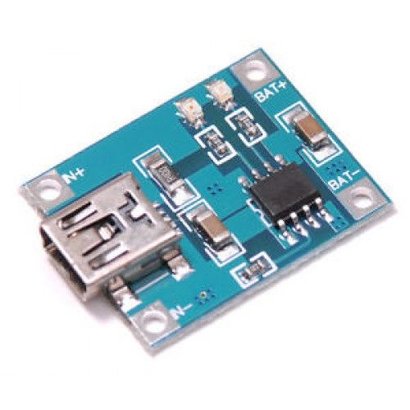

Li-Ion, LiPo USB Charging Module, 1000mA

€2,50 €2,25
  • Availability: In stock
  • Delivery time:Will be shipped within 24 hours
Charging Module for Li-Ion and LiPo Cel Batterys, with USB Mini connector
- Charing Curve: Linear
- Chargecurrent: 1000mA
- Full Charge Voltage: 4.2 Volt
- Input: 4.5 to 5.5. Volt ...More information
  • Verzending met Track and Trace
  • Kans op een gratis product dat bij jouw order past
  • Op werkdagen binnen 24 uur verzonden, mits voor 16:00 besteld Tenzij anders aangegeven!
  • Technische Vragen? Bestelling op maat? Ontwerp advies? Prototypebouw? Neem contact met ons op!

Product description

  • Availability: In stock
  • Delivery time:Will be shipped within 24 hours
  • Unit price:€2,25 / Piece
Features:

Charge module- Linear charging.
Current- 1A adjustable.
Charge precision- 1.5%.
Input voltage- 4.5V-5.5V.
Full charge voltage- 4.2V.
Led indicator- red is charging Green is full charged.
Input interface- mini USB.
Work temperature- -10℃ to +85℃.
Inversed polarity Protection - NO.
Size- small to 25X19X10mm.

Ampere meter can only be connected to 5v input end of the module.
It is better that the charging current is 37% of the battery capacity. If you charge to the battery of 1000mAH, current of 400 is enough.
The connection wire should not be too thick.
Make sure the connect point is good.
If the input voltage is too high, like 5.2v, the current will be less than 1000mA, it is normal. It is protection function, auto-substract the charging current to avoid burn damage to chip.
NO Reverse polarity Protection .
