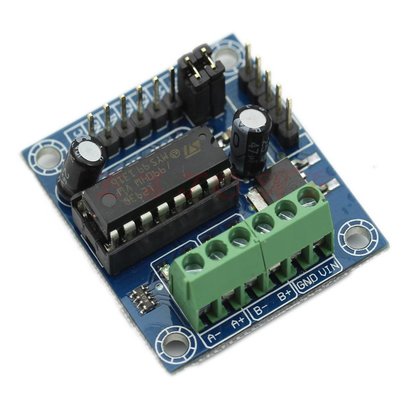

Mini Motor Driver expansion Module, Based on the L293D Chip

Mini Motor Driver expansion Module, Based on the L293D Chip

€4,25 €3,50
  • Availability: Out of stock
  • Delivery time:Will be shipped as soon as product is avalible again.
Motor Driver Module for controlling extra motors or steppers
- Based on the L293D Chip
- 600mA per channel
- 1.2 Ampere maximum power
- Thermal Protection ...More information
Out of stock
  • Gratis verzending vanaf 50 Euro
  • Verzending al vanaf 2.50 Euro
  • Kans op een gratis product dat bij jouw order past
  • Doorgaans op werkdagen, binnen 24 uur verzonden.

Product description

  • Availability: Out of stock
  • Delivery time:Will be shipped as soon as product is avalible again.
  • Unit price:€3,50 / Piece
L293D motor shield, the input voltage DC4.5-25V
600mA OUTPUT CURRENT CAPABILITY PER CHANNEL
1.2A PEAK OUTPUT CURRENT (non repetitive)PER CHANNEL
ENABLE FACILITY
OVERTEMPERATURE PROTECTION
LOGICAL "0" INPUT VOLTAGE UP TO 1.5 V(HIGH NOISE IMMUNITY)
INTERNAL CLAMP DIODES

The Device is a mnolithic integrated high voltage,high current four channel driver designed to accept standard DTL or TTL logic levels and drive inductive loads (such as relays solenoides, DC

and stepping motors) and switching power transistors .To simplify use as two bridges each pair of channels is equipped with an enable input. A separate supply input is provided for the logic, allowing operation at a lower voltage and internal clamp diodes are included. This device is suitable for use in switching applications at frequencies up to 5 kHz.

Reviews

Shawn
Shawn Posted on July 19, 2016 20:36

Dit is een goede mini shield. Ik gebruik dit samen met de DC Motor met Wiel (ook van HTF Electronics) voor een ei-uitboreder voor Pokemon Go.

5 stars based on 1 reviews Add your review
