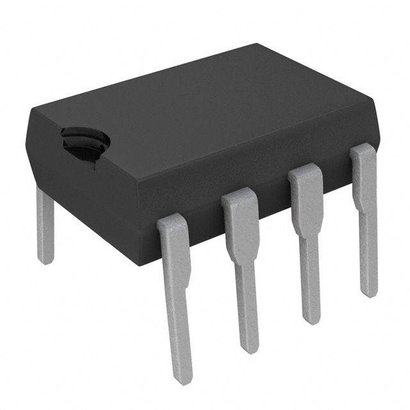

NE555

NE555

€0,35 €0,20
  • Availability: In stock
  • Delivery time:Will be shipped within 24 hours
NE555 ...More information
  • Gratis verzending vanaf 50 Euro
  • Verzending al vanaf 2.50 Euro
  • Kans op een gratis product dat bij jouw order past
  • Doorgaans op werkdagen, binnen 24 uur verzonden.

Product description

  • Availability: In stock
  • Delivery time:Will be shipped within 24 hours
  • Unit price:€0,20 / Piece

DESCRIPTION

The 555 monolithic timing circuit is a highly stable controller capable
of producing accurate time delays, or oscillation. In the time delay
mode of operation, the time is precisely controlled by one external
resistor and capacitor. For a stable operation as an oscillator, the
free running frequency and the duty cycle are both accurately
controlled with two external resistors and one capacitor. The circuit
may be triggered and reset on falling waveforms, and the output
structure can source or sink up to 200mA.

FEATURES

Turn-off time less than 2ms
Max. operating frequency greater than 500kHz
Timing from microseconds to hours
Operates in both astable and monostable modes
High output current
Adjustable duty cycle
TTL compatible
Temperature stability of 0.005% per °C
