PWM Generator for Stepper Motor Driver

PWM Generator for Stepper Motor Driver

€9,95
  • Availability: In stock
  • Delivery time:Will be shipped within 24 hours
PWM Generator for Stepper Motor Driver based on TB6560A
- Frequntie Mode
- PWM Mode
- Frequency / PWM Adjustable
- Adjustable Direction ...More information
  • Gratis verzending vanaf 50 Euro
  • Verzending al vanaf 2.50 Euro
  • Kans op een gratis product dat bij jouw order past
  • Doorgaans op werkdagen, binnen 24 uur verzonden.

Product description

  • Availability: In stock
  • Delivery time:Will be shipped within 24 hours
  • Unit price:€9,95 / Piece
Description:

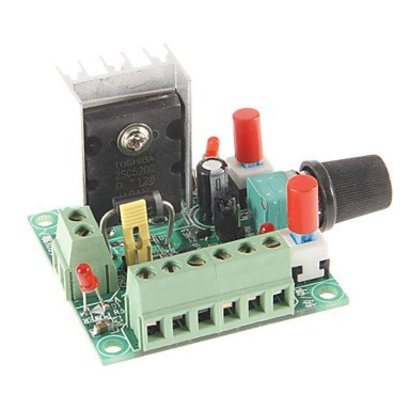

This pulse generator module is intended to be interfaced with common types of stepper / motor controllers. The module has two modes of operation, frequency and PWM. In frequency mode it will generate a square wave signal at a frequency that can be controlled by the user via a large potentiometer dial. In this mode there are 3 frequency ranges which can be selected by a jumper (see below). In PWM mode the module will generate a pulse width modulated signal with a duty cycle set by the potentiometer. There are also two latching switches that allow a user to enable/disable the motor output, and a motor direction control. The module also has two power input ranges allowing it to be powered from a very broad power supply range.

Please note: This module is intended to be used in conjunction with a motor driver, it cannot be used for driving a stepper motor directly. When using the 12V to 160V supply input option,the 5V to 12V terminal must be left disconnected.

12V-160V................DC Supply input: high voltage
GND........................0V Supply input
5V-12V....................DC Supply input: low voltage
Com Anode..............Output for motor drivers with opto-isolated common anode inputs.
Com Cathode/GND.....Output for motor drivers with opto-isolated common cathode inputs.
ENA........................Connects to motor driver enable input.
DIR........................Connects to motor driver direction input.
PUL........................Connects to motor driver clock/step input.
