ESP-32S WROOM Bluetooth WIFI Module Dual Core CPU
Informatie
Description:

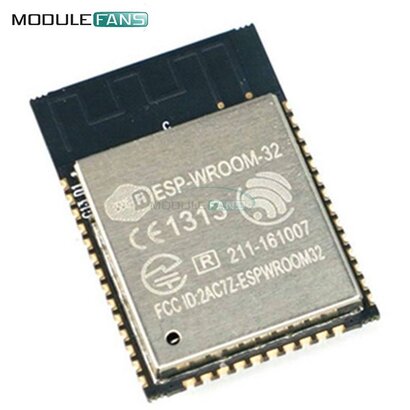

ESP-WROOM-32 is Powered by Espressif's most advanced SoC, the ESP-WROOM-32 features high performance, a wide range of peripherals, Wi-Fi and Bluetooth radio, which provide a complete solution tailored to advanced IoT applications.
240 MHz dual core Tensilica LX6 microcontroller with 600 DMIPS
Integrated 520 KB SRAM
Integrated 802.11BGN HT40 Wi-Fi transceiver, baseband, stack and LWIP
Integrated dual mode Bluetooth (classic and BLE)
16 MByte flash
2.2V to 3.6V operating voltage
-40°C to +125°C operating temperature
On-board PCB antenna / IPEX connector for external antenna
Supports sniffer, station, softAP and Wi-Fi direct modes
Max data rate of 150 Mbps@11n HT40, 72 Mbps@11n HT20, 54 Mbps@11g, and 11 Mbps@11b
Maximum transmit power of 19.5 dBm@11b, 16.5 dBm@11g, 15.5 dBm@11n
Minimum receiver sensitivity of -98 dBm
135 Mbps UDP sustained throughput
2.5 µA deep sleep current
|
Wi-fi |
802.11 b/g/n/e/i |
|
802.11 n (2.4 GHz), up to 150 Mbps |
|
|
802.11 e: QoS for wireless multimedia technology |
|
|
WMM-PS, UAPSD |
|
|
A-MPDU and A-MSDU aggregation |
|
|
Block ACK |
|
|
Fragmentation and defragmentation |
|
|
Automatic Beacon monitoring/scanning |
|
|
802.11 i security features: pre-authentication and TSN |
|
|
Wi-Fi Protected Access (WPA)/WPA2/WPA2-Enterprise/Wi-Fi Protected Setup (WPS) |
|
|
Infrastructure BSS Station mode/SoftAP mode |
|
|
Wi-Fi Direct (P2P), P2P Discovery, P2P Group Owner mode and P2P Power Management |
|
|
UMA compliant and certified |
|
|
Antenna diversity and selection |
|
|
Compliant with Bluetooth v4.2 BR/EDR and BLE specification |
|
|
Bluetooth |
Class-1, class-2 and class-3 transmitter without external power amplifier |
|
Enhanced power control |
|
|
+10 dBm transmitting power |
|
|
NZIF receiver with -98 dBm sensitivity |
|
|
Adaptive Frequency Hopping (AFH) |
|
|
Standard HCI based on SDIO/SPI/UART |
|
|
High speed UART HCI, up to 4 Mbps |
|
|
BT 4.2 controller and host stack |
|
|
Service Discover Protocol (SDP) |
|
|
General Access Profile (GAP) |
|
|
Security Manage Protocol (SMP) |
|
|
Bluetooth Low Energy (BLE) |
|
|
ATT/GATT |
|
|
HID |
|
|
All GATT-based profile supported |
|
|
SPP-Like GATT-based profile |
|
|
BLE Beacon |
|
|
A2DP/AVRCP/SPP, HSP/HFP, RFCOMM |
|
|
CVSD and SBC for audio codec |
|
|
Bluetooth Piconet and Scatternet |
